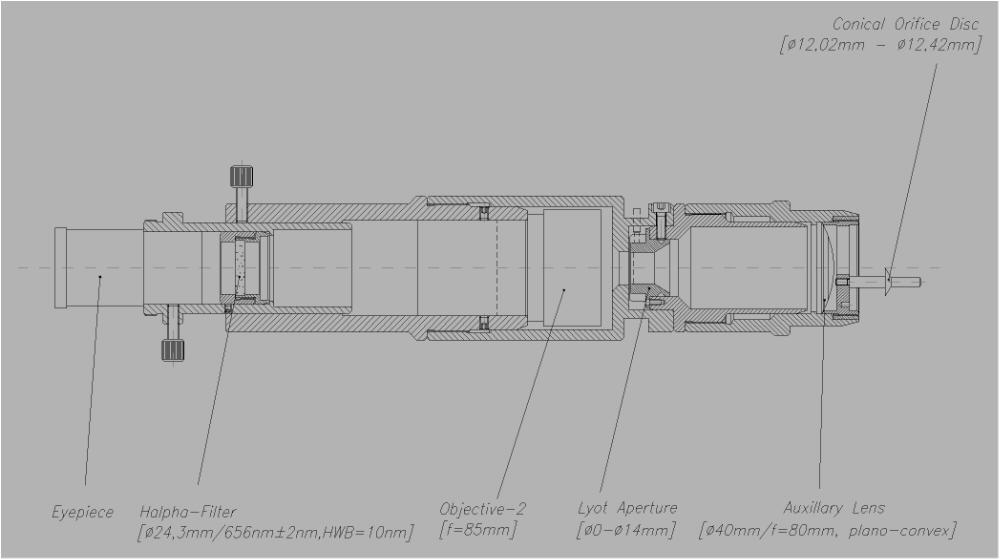

TECHNICAL SPECIFACTIONS OF THE PROMINENCE VIEWER:
|
|
I designed my prominence viewer according to the descriptions and calculations published by G. Nemec in
“Sterne und Weltaum” , 12/75. The following components are used:
|
|
Auxilary Lens:
|
40mm diameter, f=80mm, plano-convex, made by LINOS Photonics, Göttingen
|
|
Apertures:
|
set of 11 pieces for the off-axis mode, diameter range from 12.42 to 12.02mm, conical
|
|
|
Material: Alumimium alloy, partly anodised, home-built
|
|
Iris:
|
1.0mm to 14.0mm diameter, mounted on flange, made by OWIS
|
|
Objective-2:
|
f=85mm, used of an old slide projector
|
|
Halpha-filter:
|
24mm diameter, Bandwith at 50% Transmission: 1.04nm; Peak Transmission 53.08%,
|
|
|
ANDOVER CORP.
|
